Xenon HID kit for bikes and scooters with slim ballast - Salem

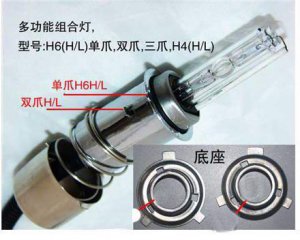

Xenon HID kit (High/Low) for bikes and scooters with super slim ballast and with base plates for different holder types:

Colour Temperatures available :

3000K,4300K,5000K,6000K,8000K



Motorcycle Kit Detailed Product Description:
Input voltage rage: 9-16V
Rated voltage: 12V
Max. Start voltage: 23kV
Input current: 3.2A
Output power: 35W
Has one HID lamps, one matched ballasts and fittings
Guarantee 3, 200 lumen brightness and 3200hrs lifetime span.
Light colors: Golden light, sun light color, sky blue, light blue, dark blue
Working temperature: -40 ~ 105 oC
Water proof and vibration resistant
Special six tests that can ensure the good quality of all of our product
High/Low in single bulb, the bulb moves forward and reverse.

HS6 Bulbs Detailed Product Description:

Watts:35W±2W
Voltage:85V±17V
Starting Voltage: 23 KV
Luminous flux: 2800 LM ± 200 LM

Lemon maintenance: Within 2250 hours no less than 60%
Colorimetric x:0.375
Colorimetric y:0.375
Tolerance of color coordinate range:
0.345≤x≤ 0.405,0.050+0.750x≤y≤0.150+0.640x
Hot-restrict test: after 1s, Lumen flux reaches up
To 80% of target or more
UV radiation: ≤10-5W/lm
Lifetime (T):3000HS
Run–up test: After 1s, Lumen flux should
reach up to 25% of target Lumen flux or
more, after 4s, reach up to 80% or more.
AS for H4 Hi/Lo lamps, the ray axis can be covtrolled forward and backward for 4 mm, and up and down for 1.0mm.

HID slim ballast specifications :
Working temperature：-40℃±105℃
Rated voltage: 12V
Ignite voltage range: DC 9V～16V
Test voltage: 13.5V
Input current: 3.2A
Output power range:35W

Certifications :


CE, RoHS Approved.


Buy with confidence, i will ship only colours you have ordered.
